Choosing the right relay is vital for reliable heat pump operation, especially for high-current and tough environments. I recommend options like the Viair 93940 for heavy-duty use, the durable RIB2401B, and the Omron G7L-1A-TUB-CB-AC for large loads. For startup assistance, the SUPCO SPP6 is excellent. Durability features such as moisture resistance, impact-proof housings, and proper electrical ratings help guarantee longevity. Keep these factors in mind to make the best choice—there’s more to contemplate that can improve your system’s performance.
Key Takeaways
- Choose relays rated above the heat pump’s maximum start-up and running current for reliable operation.
- Prioritize moisture-resistant, impact-proof housings to withstand outdoor environments and harsh conditions.
- Opt for high-current relays with durable contacts, such as copper or silver alloys, for long-lasting performance.
- Ensure compatibility with your system’s voltage and wiring requirements for safe, easy installation.
- Select UL-listed, fire-rated relays with surge suppression and environmental protections for enhanced safety and durability.

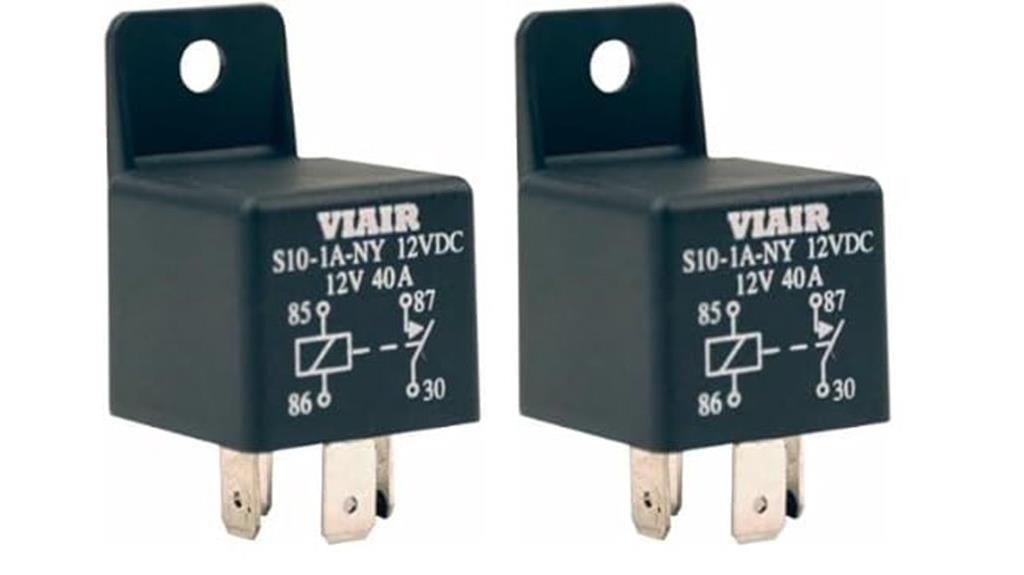

Viair 93940 40 Amp Air Compressor Relay (Pack of 2)
If you’re looking for a reliable relay to handle high-current applications, the Viair 93940 40 Amp Air Compressor Relay is an excellent choice. I’ve used this pack of two and found them to be sturdy and dependable. They handle up to 40 amps and are perfect for compressors or other demanding systems. The moisture-resistant case and molded mounting tabs ensure durability, even in tough environments. Customers report long-lasting performance, with some relays working nearly a year without issues. Plus, they’re affordable—around half the price of local options—and easy to install, making them a smart, cost-effective solution for high-current switching needs.
Best For: DIY enthusiasts and vehicle owners needing a reliable, high-current relay for compressors and other demanding electrical systems.
Pros:
- Handles up to 40 amps with a moisture-resistant case for durability
- Easy to install with molded mounting tabs and standard spade connectors
- Long-lasting performance, with some relays operating nearly a year without issues
Cons:
- Some users report missing the center connection on the four-prong design, which may affect certain setups
- Plastic mounting tabs, while sturdy, could be less durable in extreme environments
- Requires a dedicated relay per compressor to ensure proper operation

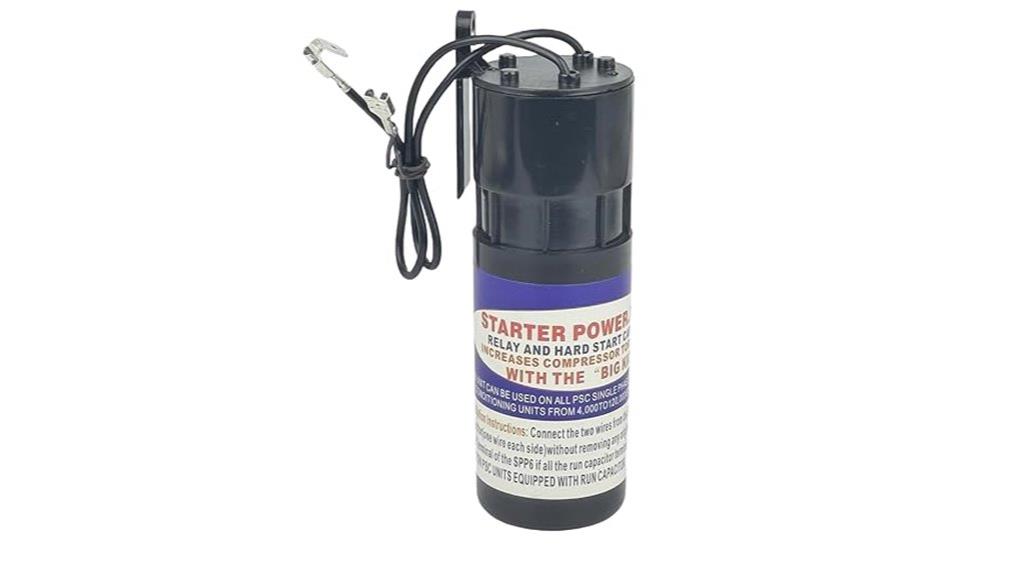

Replacement SUPCO SPP6 Hard Start Kit Relay/Capacitor
The Replacement SUPCO SPP6 Hard Start Kit Relay/Capacitor is an excellent choice for HVAC technicians and homeowners seeking to boost compressor performance and reliability. It increases starting torque by 500%, helping prevent aging and ensuring smoother operation. Compatible with a wide range of compressors—from small window units to large commercial systems—it’s suitable for PSC and CSIR types rated 115-288V, up to 10 HP. The easy two-wire installation simplifies setup, requiring no complex wiring. This kit reduces startup noise, lowers energy usage, and enhances overall lifespan. It’s a reliable, straightforward solution to improve system efficiency and longevity, making it an essential upgrade for various HVAC applications.
Best For: HVAC technicians and homeowners looking to enhance compressor startup performance, reduce noise, and extend the lifespan of their cooling or refrigeration systems.
Pros:
- Significantly increases starting torque by 500%, improving compressor reliability
- Easy two-wire installation with no complex wiring required
- Compatible with a wide range of compressors from small to large commercial units
Cons:
- Requires proper verification of compressor model and tonnage before installation
- Not suitable for compressor types outside PSC or CSIR rated 115-288V, up to 10 HP
- Installation should be done with power disconnected to ensure safety

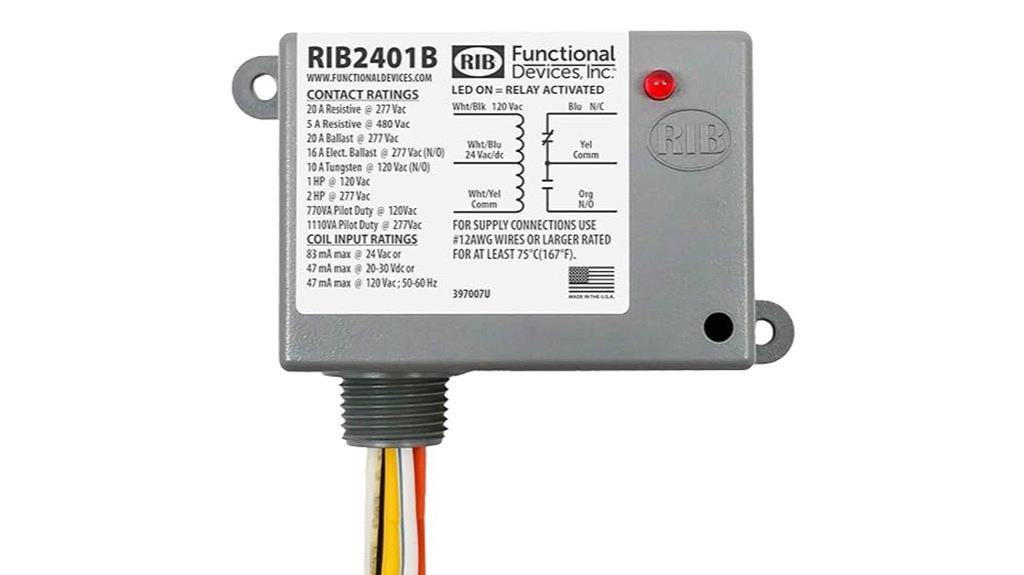

Functional Devices Power Relay RIB2401B
The Functional Devices Power Relay RIB2401B stands out as an ideal choice for those needing a dependable, high-current relay for automation projects. It’s a 20 Amp SPDT relay with options for 24 VAC/DC or 120 VAC coil voltage, housed in a durable NEMA 1 enclosure. This versatile relay handles loads up to 4000W, making it suitable for controlling heaters, humidifiers, and smart home devices. It’s easy to install, with mounting options for junction boxes, and supports multiple wiring configurations. Known for its durability and silent operation, the RIB2401B offers reliable switching and long-term performance in various automation applications.
Best For: DIY enthusiasts and professional electricians seeking a reliable, high-current relay for automation projects and household load control.
Pros:
- Durable construction with a NEMA 1 enclosure ensures long-term reliable operation.
- Supports multiple voltage options (24 VAC/DC and 120 VAC) for flexible wiring configurations.
- Silent operation and robust switching capacity handle high-current loads up to 4000W effectively.
Cons:
- Wiring can be complex; detailed instructions or tutorials may be necessary for proper installation.
- Requires familiarity with electrical wiring and safety precautions.
- Some users may find the initial setup challenging without prior experience.

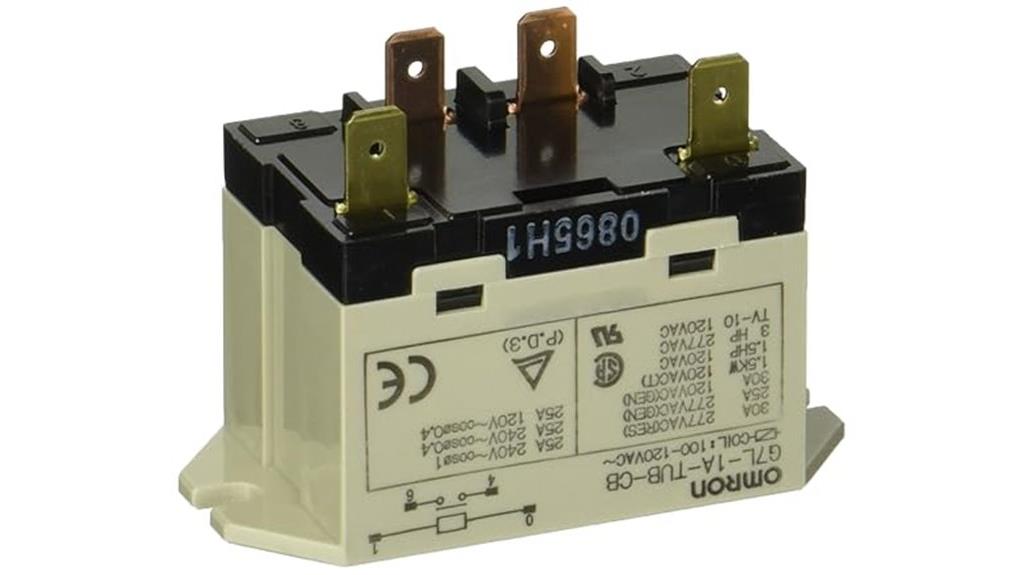

Omron G7L-1A-TUB-CB-AC General Purpose Relay
Designed for demanding applications, the Omron G7L-1A-TUB-CB-AC relay offers a high load capacity of 220VAC at 30A, making it ideal for controlling large electrical devices in air source heat pump systems. It features UL recognition, CSA certification, and flame-resistant Class B insulation, ensuring safety and reliability. The relay uses electromagnetic control to switch heavy loads with minimal input current, and its quick-connect terminals simplify installation. With a compact size and operating temperature range from -25°C to +60°C, it provides robust performance for HVAC, water pumps, and industrial equipment, making it a versatile choice for demanding environments.
Best For: professionals and technicians seeking a reliable, high-capacity relay for controlling large electrical loads in HVAC, industrial, and water pump systems.
Pros:
- High load capacity of 220VAC at 30A, suitable for demanding applications
- UL recognition, CSA certification, and flame-resistant Class B insulation for safety and quality assurance
- Easy installation with quick-connect terminals and versatile mounting options
Cons:
- May require minor modifications for specific equipment compatibility
- Operating temperature range limited to -25°C to +60°C, which may not suit extreme environments
- Larger physical size compared to smaller relays, potentially limiting installation space
RIBU1C Enclosed Pilot Relay, 10 Amp Spdt with 10-30 Vac/Dc/120 Vac Coil
If you need a reliable relay capable of switching up to 10 amps in HVAC or automation systems, the RIBU1C enclosed pilot relay is an excellent choice. It features a SPDT configuration with a versatile coil voltage range of 10-30 VAC/DC or 120 VAC, making it adaptable to various setups. Rated for over 10 million cycles, it guarantees long-term durability and safety, backed by UL listing and fire resistance. Made in the USA by Functional Devices, this relay is easy to install with standard fittings and offers flexible switching options for controlling lights, fans, or pumps reliably in your heating system.
Best For: DIY enthusiasts and professionals looking for a reliable, durable relay to control HVAC, lighting, fans, or pumps in automation and heating systems.
Pros:
- Long-lasting performance with over 10 million cycles rated for over 250 years of operation at 100 cycles per day
- Versatile coil voltage options (10-30 VAC/DC or 120 VAC) for compatibility with various systems
- Made in the USA with UL listing and fire rating ensuring safety and reliability
Cons:
- Slightly reactive coil may require proper wiring to prevent power drops during switching
- Installation may require standard electrical fittings and knowledge of wiring configurations
- Shelf life might be less than a century despite high cycle durability

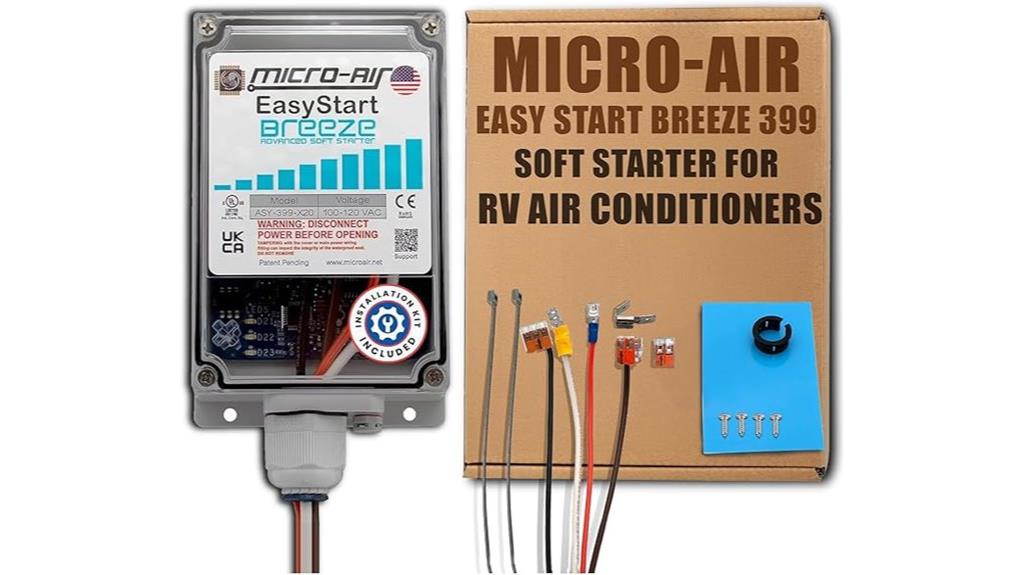

MICRO-AIR EasyStart Breeze 399 Soft Starter for RV A/C
Micro Air EasyStart Breeze 399 is an ideal soft starter for RV air conditioners up to 15,000 BTU, especially when you need reliable startup performance without overloading your generator. It reduces inrush current, allowing your AC to start smoothly and quietly, even on 2200-watt generators. Designed for compatibility with RV setups, heat pumps, and refrigeration compressors, it supports dual AC systems on a 30-amp circuit. Users praise its easy installation, Bluetooth monitoring, and ability to prevent overloads, making it a dependable choice for dry camping or extended trips. Overall, the Breeze 399 enhances comfort while protecting your electrical system.
Best For: RV owners seeking a reliable, quiet, and easy-to-install soft starter for their air conditioning units that can operate efficiently with generator power and prevent overloads during startup.
Pros:
- Reduces startup current for quieter, smoother compressor operation
- Compatible with RV heat pumps, refrigeration compressors, and dual AC setups
- Bluetooth monitoring feature aids in real-time performance tracking and troubleshooting
Cons:
- Installation instructions and diagrams could be clearer for some users
- Requires proper wiring and setup; incorrect installation may affect performance
- Limited to RV AC units up to approximately 15,000 BTU, not suitable for larger systems

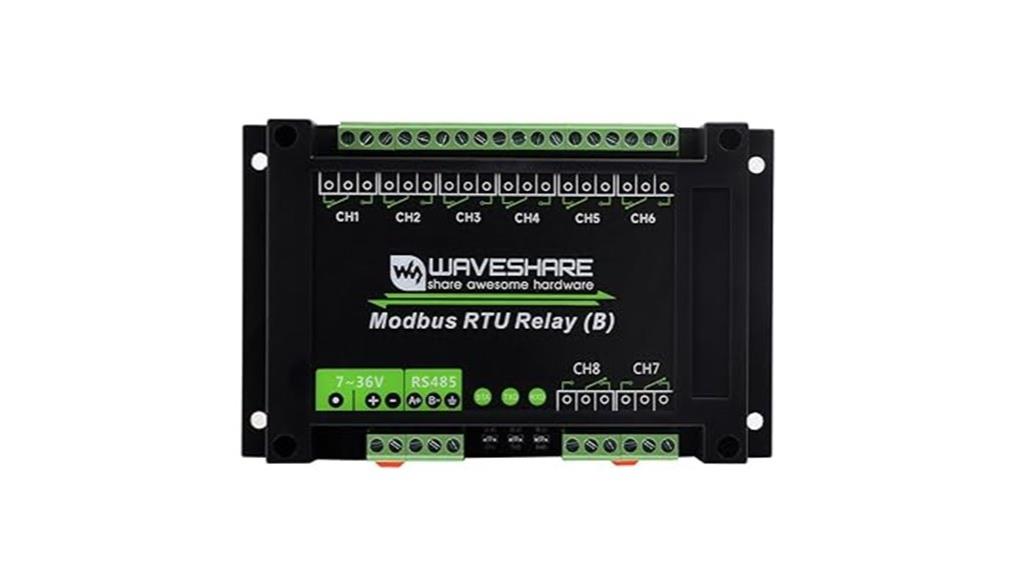

Waveshare Industrial Modbus RTU 8-Ch Relay Module
The Waveshare Industrial Modbus RTU 8-Ch Relay Module stands out as an ideal choice for industrial automation projects that require reliable, multi-channel relay control over RS485 networks. Its RS485 interface, combined with multi-isolation protection, guarantees stable operation even in noisy environments. With configurable device addresses and cascading support, it easily integrates into complex systems. The onboard power supply, optocoupler isolation, and surge protections enhance reliability and durability. Built-in timer and flash functions simplify automation tasks. Despite limited documentation, its robust design and anti-interference features make it a dependable solution for controlling multiple relays in demanding industrial settings.
Best For: industrial automation professionals seeking reliable, multi-channel relay control solutions over RS485 networks in noisy or demanding environments.
Pros:
- Robust multi-isolation protection and surge resistance ensure stable operation in harsh conditions
- Configurable device address and cascading support facilitate flexible system integration
- Built-in timer and flash functions simplify automation and reduce programming complexity
Cons:
- Limited documentation and absence of detailed setup instructions can hinder quick deployment
- No model number or comprehensive reference material complicates troubleshooting and support
- Requires familiarity with RS485 communication protocols for effective use and configuration

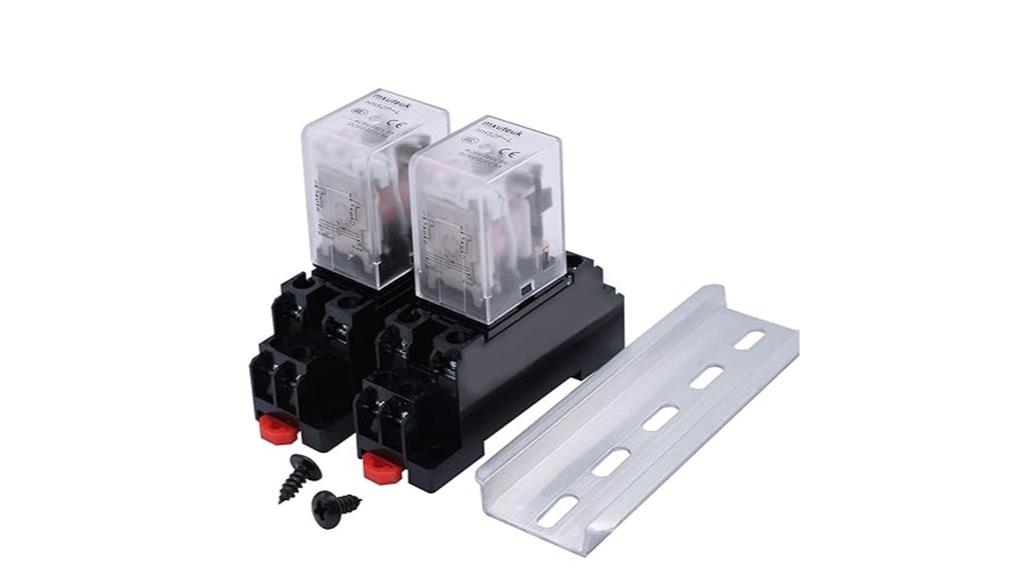

MXUTEUK 2-Pack HH52P DC 24V Coil 8-Pin Power Relay with Base and DIN Rail Slotted Aluminum
The MXUTEUK 2-Pack HH52P DC 24V Coil 8-Pin Power Relay stands out as an ideal choice for those needing reliable power isolation and remote control conversion in automation projects. These relays feature a DPDT design, suitable for switching applications like isolating 12V power inputs or battery charging circuits. They’ve proven durable over six years of use with no failures, and users report good quality and easy integration. The kit includes two relays, a base, and a DIN rail, making installation straightforward. Although lacking labeling, they perform reliably in power control and remote system conversions, offering great value for automation enthusiasts.
Best For: hobbyists and automation enthusiasts seeking reliable relays for power isolation and remote control system conversions.
Pros:
- Durable with over six years of proven reliable performance
- Includes essential components like base and DIN rail for easy installation
- Suitable for various switching applications such as power isolation and remote system upgrades
Cons:
- Only one DIN rail included despite packaging claims of two relays
- Relays lack labeling, which may require additional marking for clarity
- Packaging could be more comprehensive to prevent potential shipping issues

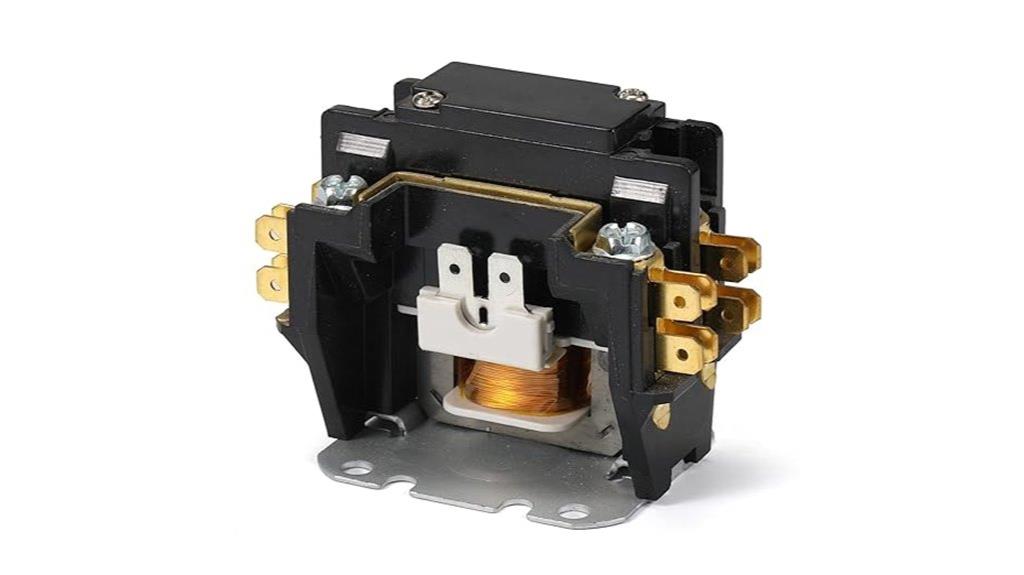

1 Pole 24V Coil FLA 32 Amp Definite Purpose Contactor
If you’re replacing a contactor in an HVAC or heat pump system that requires a 24V coil and a 32 Amp load capacity, this Pole 24V Coil FLA 32 Amp Definite Purpose Contactor is an excellent choice. It’s compatible with major brands like Carrier, Lennox, Rheem, and Trane, and features fully enclosed contacts for durability and safety. The copper contact points ensure reliable operation, while the heavy lug screws and quick-connect terminals make installation straightforward. Its compact size and robust design allow it to handle continuous operation in hot climates, making it ideal for heating, cooling, and refrigeration applications. Priced affordably, it offers a reliable, cost-effective solution.
Best For: HVAC technicians and homeowners seeking a reliable, easy-to-install contactor for heating, cooling, and refrigeration systems compatible with major brands.
Pros:
- Fully enclosed contacts for increased durability and safety
- Copper contact points ensure reliable and long-lasting operation
- Quick-connect terminals simplify installation and replacement
Cons:
- Only suitable for applications with a 24V coil and 32 Amp load capacity
- May require specific model compatibility checks before installation
- Limited to definite purpose applications, not universal for all contactor needs
Factors to Consider When Choosing an Air Source Heat Pump Relay
When selecting an air source heat pump relay, it’s vital to consider how well it matches your system’s specifications. You should also evaluate its load capacity, voltage, and power ratings to guarantee reliable operation. Additionally, factors like durability, material quality, and ease of installation play a decisive role in making the right choice.
Compatibility With System
Choosing the right relay for an air source heat pump requires careful attention to its compatibility with your system’s electrical and control specifications. First, make certain the relay’s voltage rating matches your heat pump’s control circuit, whether it’s 24V or 120V AC/DC. Next, verify that the relay can handle currents exceeding the heat pump’s compressor inrush and running currents, preventing overloads. Confirm that the contact configuration suits your system’s switching needs—like SPST or DPDT—to ensure proper operation. Additionally, check the coil resistance and power consumption align with your control board’s specs to avoid circuit issues. Finally, make sure the relay’s physical and electrical features fit seamlessly with your existing wiring and control modules for a reliable connection.
Load Capacity Requirements
To select an appropriate relay for your air source heat pump, it’s essential to guarantee that its current rating can handle both the compressor’s startup surge and its continuous running current. The relay must meet or exceed these maximum currents to prevent contact failure or damage. Additionally, verify that the relay’s voltage compatibility matches the control circuit to avoid electrical mismatches. It’s important to choose a relay with enough load capacity to manage transient inrush currents during compressor startup, ensuring reliable operation. Consider the relay’s duty cycle and thermal handling capabilities so it can operate continuously without overheating. Finally, match the contact configuration, such as SPST or SPDT, to your system’s switching requirements for ideal performance.
Voltage and Power Specs
Selecting the right relay for your air source heat pump means paying close attention to voltage and power specifications. First, verify the relay’s coil voltage matches your heat pump’s control circuit, typically 24V or 120V AC/DC. Next, confirm the relay’s switching current and voltage ratings are above your system’s maximum load, including the compressor and auxiliary components. Choose relays with contact ratings of at least 10A or higher to handle electrical demands safely. Additionally, check the relay’s dielectric strength and insulation ratings to prevent electrical faults at your system’s operating voltage. Finally, validate the relay’s compatibility with your heat pump’s start-up and running power specifications to ensure reliable performance without overheating or failure. These factors are essential for safe, efficient operation.
Durability and Material
Since outdoor and indoor environments can be harsh, the durability and material quality of an air source heat pump relay are essential for guaranteeing long-term reliable operation. I look for relays with housings made from moisture-resistant, impact-resistant plastics or metals that can withstand vibrations and shocks. High-quality contacts, such as copper or silver alloys, resist corrosion and keep conductivity stable over time. The relay should also be rated for temperatures between -25°C and +60°C, typical of HVAC environments. Material choice influences resistance to electrical arcing, thermal stress, and chemical exposure, all critical for durability. Choosing a relay with robust materials ensures it can handle the demands of continuous operation, reducing failures and maintaining system efficiency over the years.
Ease of Installation
Choosing an air source heat pump relay that’s easy to install can save you time and prevent frustration during setup. Look for relays with clearly marked terminals and simple wiring diagrams—these make connections straightforward and reduce errors. Opt for models with mounting features like tabs or brackets, which help secure the relay quickly, even in tight or complex spaces. Confirm the connector types match your existing wiring to avoid extra adapters or modifications. A low-profile or compact design can make fitting the relay into crowded control panels much easier. Finally, verify that the relay’s electrical ratings and coil voltages align with your system’s requirements. Doing so will ensure a smooth installation process, saving you effort and ensuring reliable operation from the start.
Environmental Resistance
Ever wondered how an air source heat pump relay can withstand harsh outdoor conditions? The key lies in its environmental resistance features. A moisture-resistant or waterproof casing is essential to prevent corrosion and protect against humidity. It must also handle temperature extremes, from -40°C to +50°C, ensuring reliable operation regardless of climate. The relay’s contacts need protection from dust, dirt, and debris that could cause arcing or failure. UV-resistant materials in the housing guard against sun damage for exposed installations. Additionally, protective features like surge suppression shield the relay from electrical surges caused by lightning or power fluctuations. These considerations guarantee the relay remains durable and dependable, even in challenging outdoor environments, making it a critical factor in choosing the best heat pump relay.
Frequently Asked Questions
How Do Relay Failures Impact Overall Heat Pump Efficiency?
Relay failures can seriously impact a heat pump’s efficiency by disrupting its ability to switch between heating and cooling modes properly. When a relay fails, it may cause the system to run continuously or not at all, wasting energy and reducing performance. I’ve seen this happen often, and it highlights how vital reliable relays are for maintaining essential operation and energy savings in your heat pump.
What Are Signs of a Failing Air Source Heat Pump Relay?
Ever notice your heat pump acting like a drama queen? That’s how I spot a failing relay. It might start by refusing to turn on, or suddenly shutting off mid-cycle. Sometimes, I hear strange clicking sounds or see inconsistent heating. These signs tell me the relay is struggling. If your heat pump’s throwing tantrums, it’s time to check those relays—they’re the unsung heroes keeping your home cozy.
Can Replacing Relays Extend the Life of the Heat Pump?
Replacing relays can definitely help extend the life of your heat pump. I’ve seen firsthand how faulty relays cause issues, and swapping them out restores proper function. Regularly replacing worn or damaged relays prevents further damage to the system’s compressor and other components. So, if you notice relay problems early, replacing them not only fixes the issue but also prolongs your heat pump’s overall lifespan.
Are There Specific Relay Types Better for Cold Climates?
When considering relay types for cold climates, I find that dual or heavy-duty relays stand out. They’re like winter’s tough guards, resisting low temperatures better than standard relays. While regular relays may falter in freezing weather, these specialized ones guarantee your heat pump keeps running smoothly. So, if you live in a cold area, investing in robust relays is like giving your system a winter-proof shield.
How Does Relay Compatibility Affect Heat Pump Installation Options?
When considering relay compatibility, I realize it directly influences how flexible my heat pump installation options are. If the relay matches my system’s specifications, I can choose different models or upgrade easily. Incompatibility limits choices, possibly forcing me into costly modifications or replacements. Ensuring compatibility means I get reliable performance, easier installation, and future-proofing, making my heating system more efficient and adaptable to my needs.
Conclusion
Choosing the right relay can make all the difference in your heat pump’s performance. Remember, a chain is only as strong as its weakest link, so don’t cut corners. By considering factors like current capacity and compatibility, you’ll guarantee reliable heating all year round. Investing in a quality relay now means fewer headaches later. After all, an ounce of prevention is worth a pound of cure—so pick wisely for peace of mind.
